Processor
- Available with Intel N95 or Intel Core i3-N300
Memory
- Integrated LPDDR5 4800MHz; configurable with 8GB or 16GB
Ethernet
- 1 × Intel i226-V 2.5GbE network port (PCIe interface)
Storage
- Supports NVMe or SATA (NGFF) M.2 2242 SSDs, up to 2TB

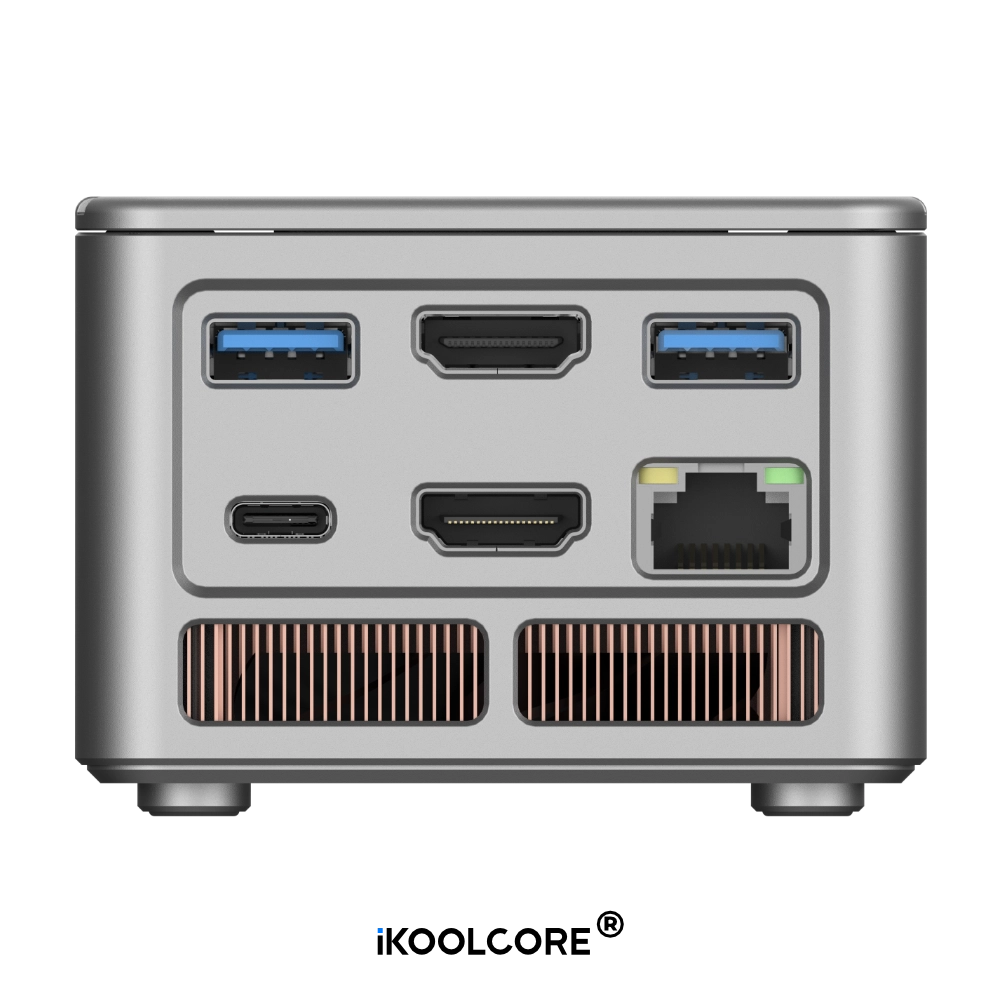

USB Ports

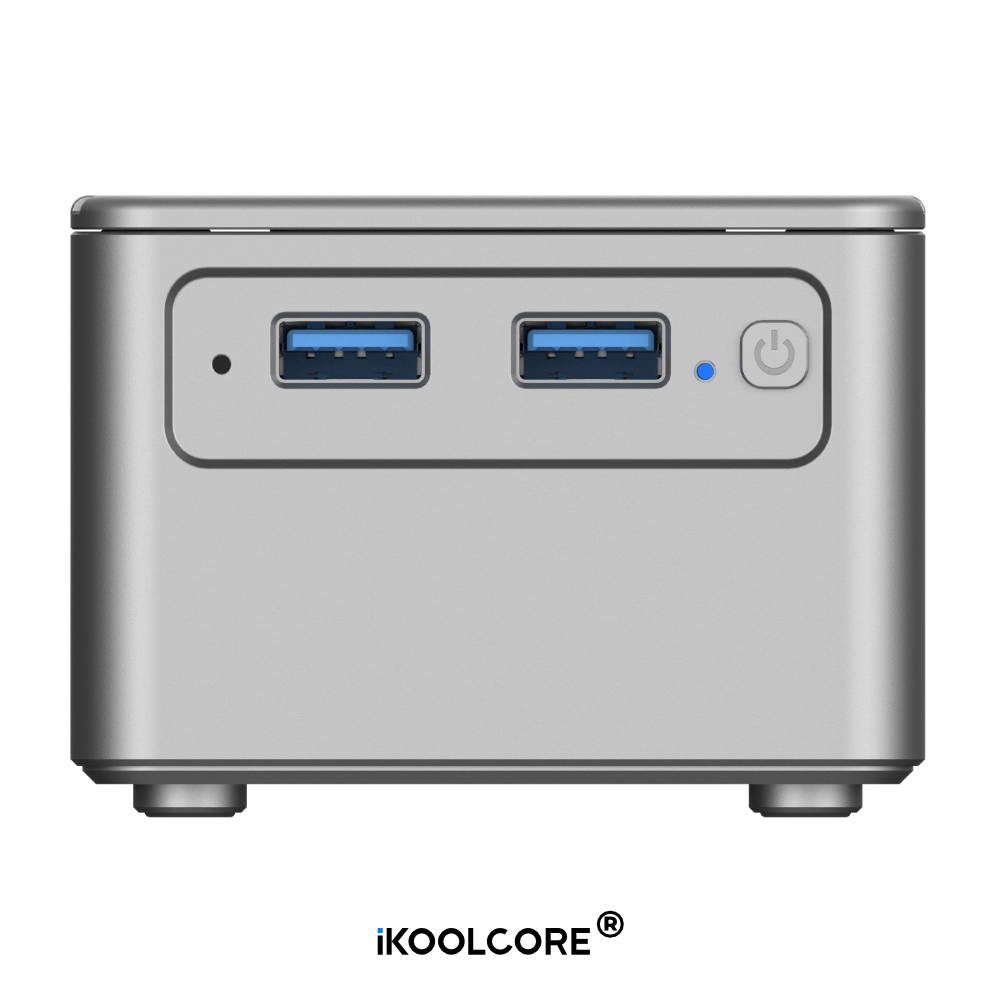

- 4 × USB-A 3.2 Gen 1 (5Gbps)
- 1 × USB-C 3.2 Gen 2 (10Gbps)
Display Output
- Dual HDMI 2.0 and one USB-C video output; supports 4K @ 60Hz
Wireless Connectivity
- E-Key socket supports optional Wi-Fi 6/6E + Bluetooth modules (not included)
Audio
- USB-C audio port powered by Realtek ALC897

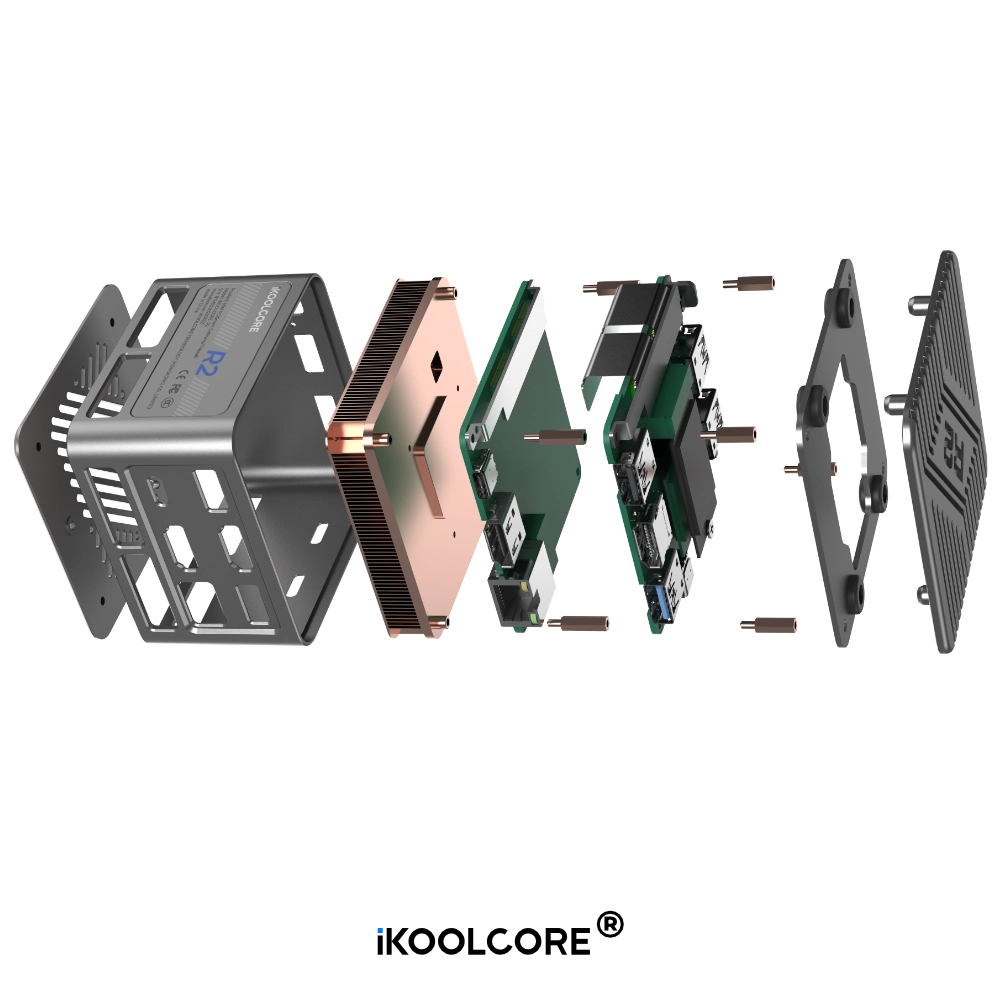

Cooling System

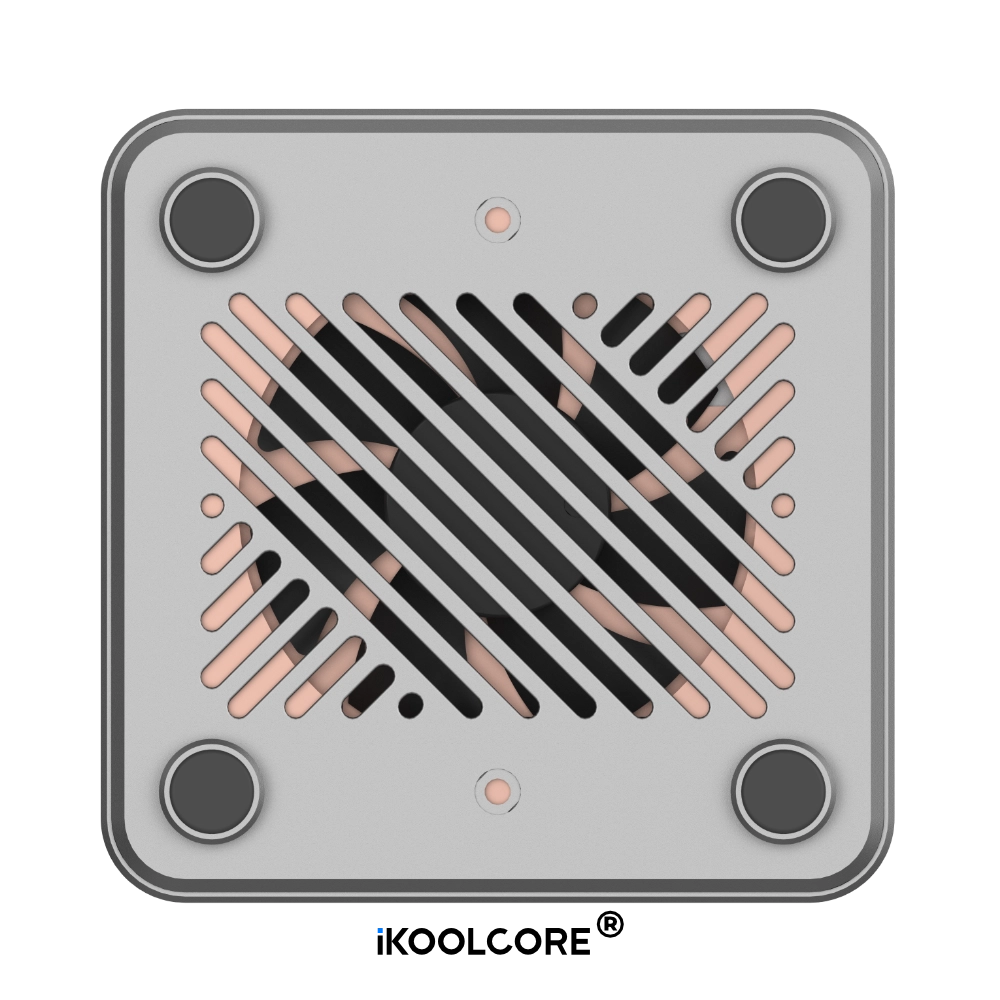

- All-copper CPU heatsink with PWM fan

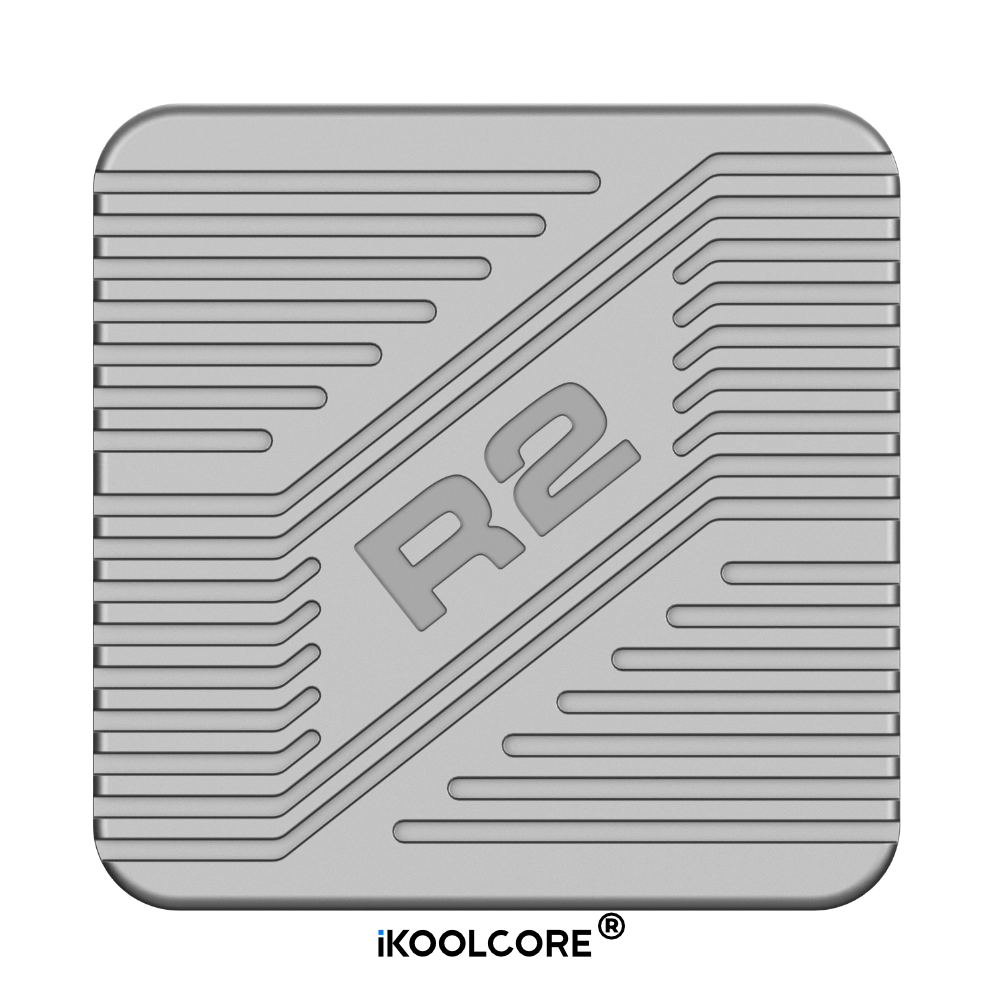

- CNC-machined aluminum top for passive M.2 SSD cooling
OS Compatibility
- Fully compatible with Windows, Linux, pfSense, OPNsense, OpenWrt, Proxmox VE, VMware ESXi, Unraid, and more
BIOS
- AMI EFI BIOS with support for auto power-on, Wake-on-LAN (WOL), and PXE boot
Power Supply
- 12V/4000mA DC adapter included
- Regional plug provided
- Supports PD protocol with GaN power adapters
Dimensions
- 7.5 × 7.5 × 5.2 cm (2.96 × 2.96 × 2.05 inches)
Weight
- 420g (device only)
- 850g (with packaging)
